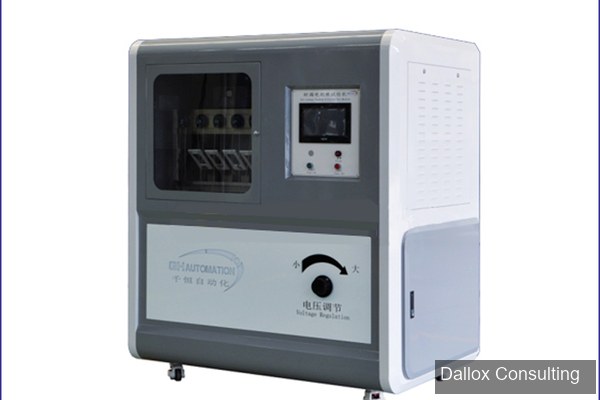

Technical Specifications
| Parameter | Specification |
|---|---|
| Test Voltage | 1.0-6.0 kV AC, adjustable |
| Contaminant | Ammonium chloride + wetting agent |
| Flow Rate | 0.15-0.9 ml/min per channel |
| Test Duration | 6 hours (standard) |
| Channels | 5 independent test stations |
| Applicable Standards | IEC 60587, ASTM D2303 |
Key Features
- 5 independent channels for parallel testing
- High-precision peristaltic pumps for contaminant dosing
- Automatic tracking detection by overcurrent monitoring
- Data logging of leakage current for each channel
- Includes erosion depth measurement tools post-test
Tracking Resistance — A Key Material Property
The tracking resistance of the housing material determines how well it resists the formation of conductive carbonized paths under electrical stress and contamination. Silicone rubber has inherently better tracking resistance than EPDM or epoxy, but formulation variations significantly affect performance. IEC 60587 testing provides quantitative comparison between materials.
