Technical Specifications
| Parameter | Specification |
|---|---|
| Max Tensile Force | 100 kN |
| Max Cantilever Load | 20 kN |
| Specimen Length | Up to 1000 mm |
| Test Modes | Tension / Cantilever / Combined |
| Frame Type | Vertical column, 4-column rigid design |
| Applicable Standards | IEC 60383, ANSI C29.1, BS 137 |
Key Features
- Dual-mode operation — switch between tension and cantilever without re-rigging
- Affordable solution for small-to-medium insulator manufacturers
- Quick-change fixture system for pin, post, and line post insulators
- Digital controller with pre-programmed test routines for common standards
- Compact footprint suitable for smaller labs

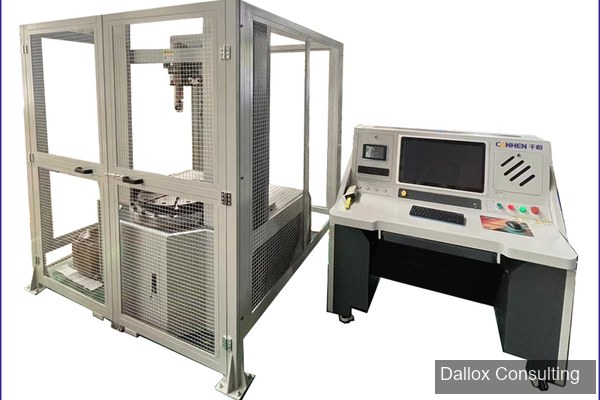

An Economical Solution for 11-36kV Insulator Manufacturers
Not every lab needs a 1000kN universal tester. For manufacturers of distribution-class pin, post and small suspension insulators (11kV, 22kV, 33kV), this combined tension-cantilever tester provides all the mechanical testing capability needed at a fraction of the cost of large UTMs. It covers the mechanical type and routine tests required by IEC 60383 for these voltage classes.
