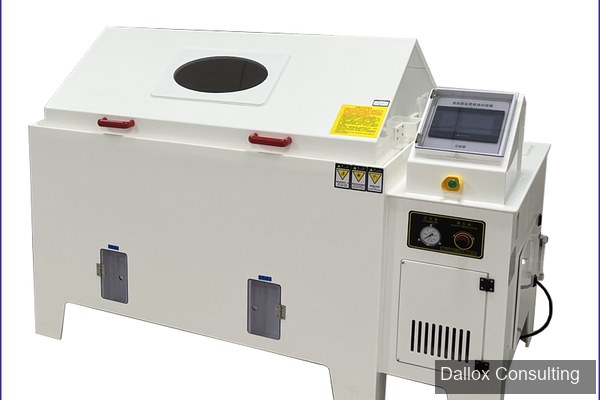

Technical Specifications
| Parameter | Specification |
|---|---|
| Test Types | NSS, CASS, cyclic corrosion |
| Chamber Volume | 400L / 800L / 1200L |
| Salt Concentration | 5% plus or minus 0.5% NaCl |
| Temperature | 35 plus or minus 2 deg C |
| Spray Rate | 1.0-2.0 ml/80cm2/h |
| Applicable Standards | ISO 9227, IEC 60383, ASTM B117 |
Key Features
- Pneumatic atomization for uniform mist distribution
- Automatic salt solution level monitoring and replenishment
- Corrosion-resistant PVC/fiberglass chamber construction
- Digital temperature and spray rate control
- Timer with programmable test duration up to 9999 hours
Corrosion Protection of Insulator Fittings
The metal fittings on insulators — caps, pins, clevises, and corona rings — are typically hot-dip galvanized for corrosion protection. Salt spray testing per ISO 9227 is the standard accelerated test for verifying galvanizing quality. A properly galvanized fitting should withstand 500-1000 hours of neutral salt spray without red rust appearing on the surface.
