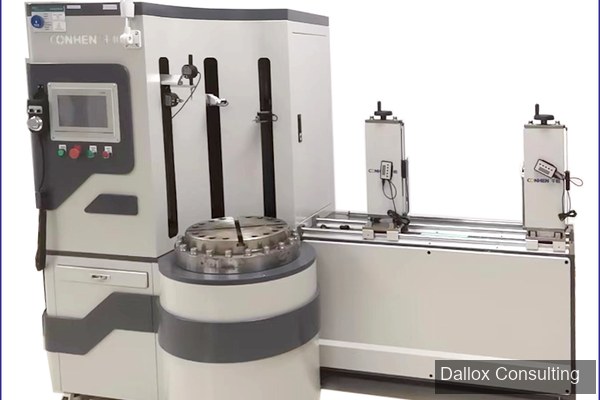

Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Accuracy | plus or minus 0.05 mm |
| Max Insulator Height | 3000 mm |
| Measured Parameters | Height, shed spacing, diameter, parallelism, perpendicularity |
| Scanning Method | Laser line scanner on linear guide |
| Measurement Speed | 30-60 seconds per unit |
| Applicable Standards | IEC 60383, IEC 61109, IEC 62231 |
Key Features
- Non-contact laser measurement — no risk of scratching insulator surface
- Automatic recognition of sheds, core rod, and end fitting positions
- CAD model comparison — overlay scan data on design model
- Automatic pass/fail judgment against tolerance database
- SPC trending across production batches with control charts
Why Dimensional Accuracy Matters
Post insulator dimensions — particularly shed spacing, total height, and mounting hole positions — are critical for interchangeability and proper assembly in substations. A post insulator that is 5mm too tall creates alignment problems for busbar connections. IEC 60383 specifies dimensional tolerances that must be verified on every production batch.
