Technical Specifications
| Parameter | Specification |
|---|---|
| Stress Factors | UV (xenon) + salt spray + humidity + thermal + HV |
| Applied Voltage | Up to 100 kV AC (simultaneous) |
| Temperature Range | -20 to +100 deg C |
| UV Source | Xenon arc lamp, 1.8-6.5 kW |
| Specimen Capacity | 4-8 insulator units |
| Cycle Programming | Fully customizable multi-stress profiles |
Key Features
- Truly simultaneous multi-stress application — not sequential
- High voltage bushing for in-chamber electrical stress
- Synchronized control of all stress parameters
- Leakage current monitoring throughout aging duration
- Custom-programmable daily and seasonal simulation cycles

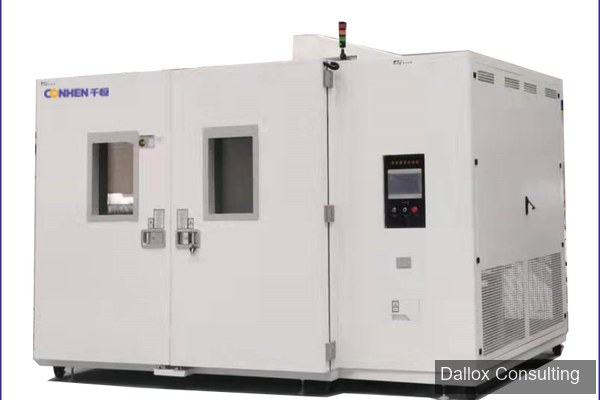

The Need for Multi-Factor Aging Tests
In the field, insulators never experience a single stress in isolation. Rain, UV, pollution, voltage, and temperature cycling all act simultaneously. Single-factor aging tests can miss synergistic degradation mechanisms that only appear when multiple stresses interact. The multi-factor aging device addresses this by applying all relevant stresses concurrently.
Research Applications
Multi-factor aging systems are particularly valuable for R&D evaluation of new housing materials, coating formulations, and insulator designs. They provide the most realistic accelerated aging data for predicting 25-40 year service life performance.
