Technical Specifications
| Parameter | Specification |
|---|---|
| Output Voltage | 400kV to 2400kV |
| Energy Rating | 10-50 kJ |
| Waveform | 1.2/50 microseconds |
| Stages | 4-12 modular |
| Charging Time | < 60 seconds |
Key Features
- Modular Marx generator allows voltage upgrade by adding stages
- Digital impulse analyzing system for waveform verification
- Automatic sphere-gap calibration

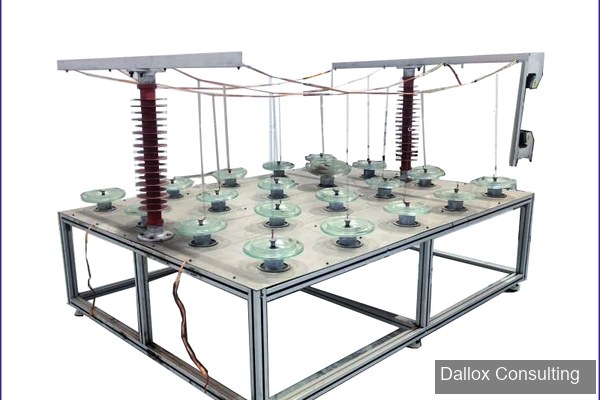

BIL Testing for Insulators
Lightning is the primary cause of insulator flashover on transmission lines. The BIL (Basic Impulse Insulation Level) test verifies insulator survival under the standard 1.2/50 microsecond lightning impulse waveform.
