Technical Specifications
| Parameter | Specification |
|---|---|
| Max Capacity | 2000 kN (200 ton) |
| Max Specimen Length | 6000 mm |
| Test Speed | 0.1-100 mm/min |
| Grip Type | Hydraulic wedge grips |
| Measurement | Load cell + extensometer + LVDT |
| Applicable Standards | IEC 61109, IEC 60383, IEC 61466 |
Key Features
- Long bed design accommodates complete insulator strings up to 6m
- Hydraulic wedge grips with automatic clamping for quick setup
- Multi-point displacement measurement along specimen length
- Dual-cylinder loading for uniform force distribution
- Reinforced steel bed with linear guide rails for alignment

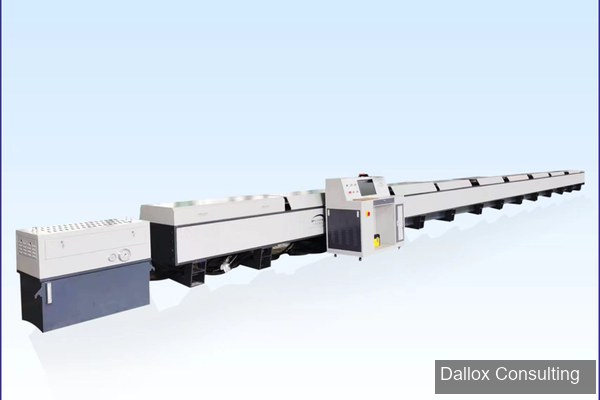

Testing Long Rod Insulators
Long rod composite insulators used in transmission lines (110kV to 765kV) can be up to 4-5 meters in length. Standard vertical UTMs cannot accommodate these specimens. The horizontal configuration allows testing of full-length units including complete insulator strings with fittings attached.
