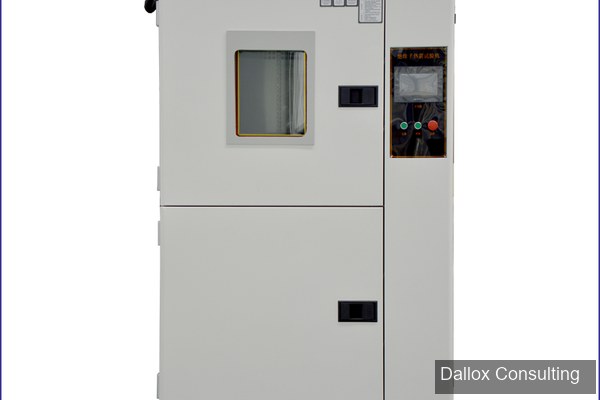

Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Differential | 50K plus or minus 5K |
| Heating Method | Forced air oven |
| Cold Medium | Water at 15 plus or minus 5 deg C |
| Transfer Time | < 30 seconds (automated) |
| Cycle Count | 3 cycles per standard |
| Applicable Standards | IEC 60383-1 Section 15.1 |
Key Features
- Automated transfer mechanism — consistent transfer time under 30 seconds
- Precision temperature control of both hot and cold media
- Batch processing of multiple insulator units
- Visual inspection station post-test for crack detection
- Programmable cycle sequencer with data logging
Thermal Shock Test per IEC 60383
IEC 60383-1 Section 15.1 specifies the thermal shock test for porcelain insulator units. The insulator is heated in air to a temperature 50K above the cold water temperature, then rapidly immersed in cold water. After 3 cycles, the insulator is examined for cracks or glaze damage. This test verifies that the porcelain body and glaze can withstand sudden temperature changes without failure.
Why 50 Kelvin Matters
The 50K temperature differential represents a realistic thermal shock that an insulator might experience during sudden rain on a hot day, or when a cloud passes over a sun-heated insulator. Insulators that fail this test have manufacturing defects — internal stresses, micro-cracks, or glaze-body mismatch — that would lead to premature field failure.
