Technical Specifications
| Parameter | Specification |
|---|---|
| Output Voltage | 0-100 kV AC |
| Test Medium | Insulating oil bath |
| Voltage Ramp | 1 kV/s (automatic) |
| Electrode Configuration | Per IEC 61109 Annex |
| Specimen Size | Core rod segments 30-100mm |
| Measurement | Breakdown voltage + location recording |
Key Features
- Oil-immersed electrodes prevent surface flashover
- Automatic voltage ramp with breakdown detection
- Digital recording of breakdown voltage for each specimen
- Temperature-controlled oil bath for consistent test conditions
- Safety interlock with oil level sensor

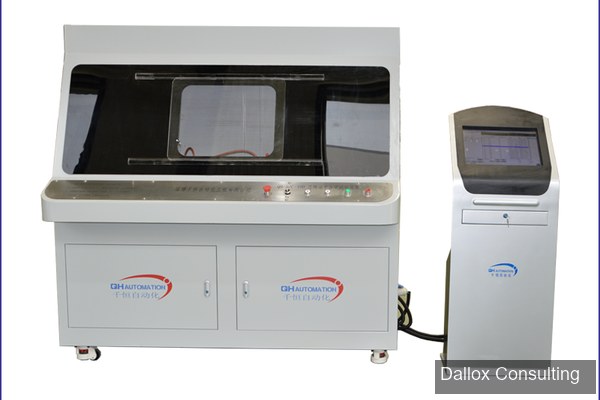

FRP Core Rod Electrical Integrity Testing
The oil puncture test is a sample test required by IEC 61109 for composite insulators. It measures the dielectric breakdown voltage of the FRP core rod material in an oil medium to eliminate surface effects. A low breakdown voltage indicates manufacturing defects such as voids, contamination, or insufficient resin impregnation in the glass fiber composite.
