Technical Specifications
| Parameter | Specification |
|---|---|
| Test Method | Vacuum dye penetration + sectioning |
| Dye Type | Fluorescent or visible dye penetrant |
| Vacuum Level | < 5 mbar |
| Penetration Time | 15-30 minutes |
| Specimen | Core rod cross-sections, 10-30mm |
| Applicable Standards | IEC 61109, IEC 62217 |
Key Features
- Vacuum chamber ensures dye penetrates all accessible voids
- Fluorescent dye option with UV inspection lamp
- Cross-section cutting jig for consistent specimen preparation
- Digital microscope interface for defect documentation
- Batch processing of 10-20 specimens per cycle

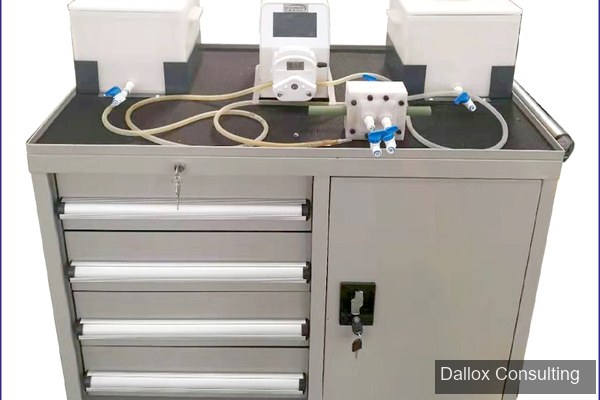

Detecting Internal Defects in FRP Core Rods
FRP core rods can contain manufacturing defects — voids, dry fibers, contamination, or delamination between glass fiber and resin. These defects are impossible to detect by visual inspection alone. The dye penetration test, combined with cross-sectioning, reveals internal defects that would otherwise become failure initiation points in service.
