Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement | Axial runout (TIR) at end fitting |
| Resolution | 0.001 mm (dial indicator) / 0.01 mm digital |
| Specimen Length | 100-4000 mm |
| Support Type | Adjustable roller stands with center alignment |
| Applicable Standards | IEC 60383, IEC 61109, ANSI C29.1 |
Key Features
- Heavy-duty cast iron base for vibration-free measurement
- Adjustable roller supports accommodate all insulator sizes
- Digital dial indicator with peak-hold function
- Rotation mechanism for smooth 360-degree measurement
- Portable option for field inspection at customer site

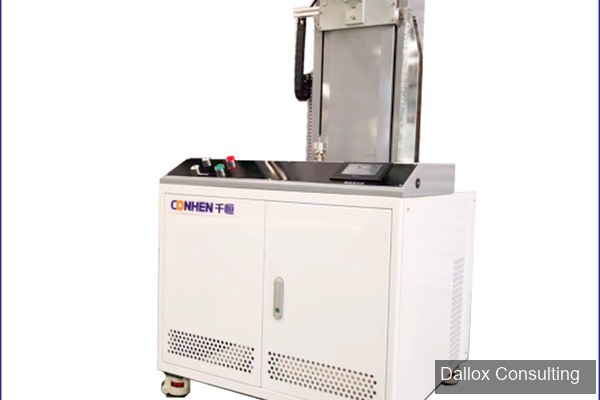

Checking Axial Deviation
Axial deviation — also called runout or eccentricity — is the measure of how much the end fitting centerline deviates from the insulator body centerline. This parameter directly affects load distribution. IEC standards specify maximum permissible axial deviation as a function of insulator length and type.
