Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Resolution | 0.01 degree |
| Measured Deviation | Angular offset between end fitting axes |
| Specimen Support | V-block or roller support |
| Readout | Digital inclinometer / laser alignment |
| Applicable Standards | IEC 60383, IEC 61109 |
Key Features
- Digital inclinometer with data logging for traceability
- Adjustable support for insulators 200-3000mm length
- Zero-reference calibration before each measurement
- Pass/fail indicator with programmable tolerance limits
- Compact design suitable for production line QC station

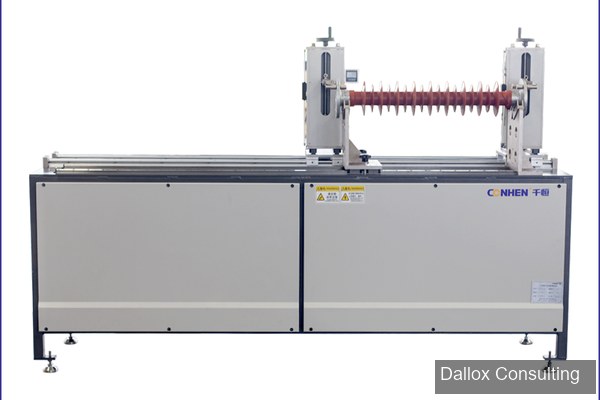

Angular Deviation and Assembly Quality
The angular alignment between end fittings affects the insulator's mechanical performance and assembly with other line hardware. Excessive angular deviation creates bending moments when the insulator is loaded in tension, potentially reducing its effective strength. Both IEC 60383 (ceramic) and IEC 61109 (composite) specify maximum allowable angular deviation.
